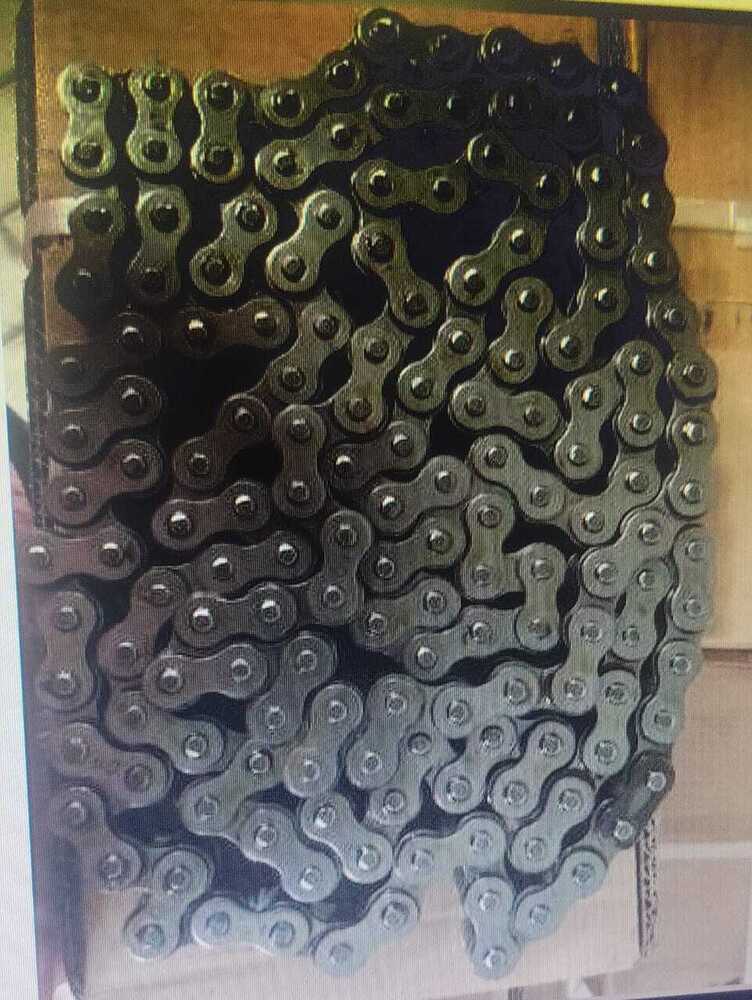

Roller Chain

Name: Roller Chain
Brand: Siddhi Machine Tools
Price: 800.0 INR
Availability: InStock

Price 800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Roller Chain Specification

Type
Roller Chain

Noise Level
Low

Usage
Conveying and transmission in industrial machinery

Load Capacity
Varies by chain size and type

Material
Carbon Steel / Stainless Steel

Drive Type
Mechanical

Max. Lifting Weight
Depends on the pitch and specification

Mechanism Type
Roller chain transmission

Working Temperature
-20C to +150C

Capacity
Standard chain, customizable sizes available

Tensile Strength
Up to 350 kN (varies by type)

Inner Width
Varies by specification

Breaking Load
High, as per standard specification

Number of Strands
Single, double, and multiple strand available

Coating
Self-color, zinc plated, nickel plated, black oxide

Certificates
ISO 9001 Certified

Length per Package
10 Meter/Box or as specified

Chain Grade
ISO/DIN/ANSI standard

Application
Industrial conveyors, agricultural machinery, automotive

Chain Pitch
1/2 inch to 2 inch (customizable as per request)

Pin Diameter
Varies by chain model

Lubrication Requirement
Yes, regular lubrication recommended

Roller Chain Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
5000 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Roller Chain

A roller chain is a simple, reliable, and efficient mechanical component used for transmitting power between sprockets, common in everything from bicycles and motorcycles to industrial machinery like conveyors and printing presses. It consists of interconnected inner and outer link plates, pins, bushes, and rollers that rotate freely, reducing friction as they engage with sprocket teeth to transfer force smoothly.

Key Components

Inner Links: Comprise inner plates and bushes.

Outer Links: Consist of outer plates and pins that pass through the bushes.

Rollers: Cylindrical sleeves that fit over the bushes, allowing them to rotate on the sprocket teeth.

How it Works

Power Transfer: A motor turns one sprocket, which engages the chain's rollers.

Friction Reduction: The rollers rotate on the bushes as they contact the sprocket, significantly lowering friction compared to solid links.

Force Transmission: This rolling action transmits power efficiently to another sprocket.

Types & Variations

Strands: Available in single, double (duplex), or triple (triplex) strands for increased strength.

Offset Links: Used when an odd number of links is needed, with two-pitch offset links being stronger than one-pitch ones.

Specialty Chains: Include self-lubricating (self-lube) options for clean environments.

Common Uses

Transportation: Bicycles, motorcycles, cars.

Industrial: Conveyors, manufacturing equipment, printing presses, agricultural machinery.

Versatile Industrial Application

Our roller chains are engineered for a wide range of industrial uses, from conveyor systems in factories to transmission components in agricultural and automotive machinery. Designed to withstand heavy-duty operation, they provide reliable performance under varied loads and environmental conditions.

Customizable Specifications

Chains can be tailored to meet unique operational requirements, with multiple options for pitch, strand number, and material type. Choose from coatings such as zinc, nickel, or black oxide for additional durability, and specify package length (10 meters or custom) to best fit your project needs.

Certified Quality and Performance

Manufactured to ISO, DIN, and ANSI standards, our roller chains assure consistent strength, low noise, and high breaking loads. Each product is ISO 9001 certified, offering you peace of mind about its quality and reliability in critical transmission and conveying systems.

FAQ's of Roller Chain:

Q: How should I select the right roller chain pitch and size for my machinery?

A: Identify the power, speed, and type of load your application demands, then consult the standard specifications (ISO/DIN/ANSI) as well as your machine's requirements. Our team can assist you in choosing the optimal pitch and strand configuration for efficient transmission and durability.

Q: What lubrication is recommended for these roller chains, and how often should it be applied?

A: Regular lubrication is essential to minimize wear and ensure smooth operation. Use industry-standard lubricants suited for mechanical chains, and follow maintenance intervals based on operational hours and environmental conditions for best results.

Q: Where are these roller chains typically used?

A: These chains are widely used in industrial conveyor systems, agricultural machinery, and automotive equipment, serving as reliable components for conveying and power transmission in demanding environments.

Q: What are the main benefits of choosing customizable roller chains?

A: Customizable roller chains allow you to match exact operational needs, from material selection to coating and strand number. This ensures longer lifespan, better performance, and adaptability for specialized machinery or challenging working conditions.

Q: What quality certifications do your roller chains have?

A: All offered roller chains are ISO 9001 certified and conform to ISO, DIN, and ANSI standards. This guarantees consistent manufacturing quality, high tensile strength, and dependable service in a wide variety of applications.

Q: Can these chains operate effectively in extreme temperatures or harsh environments?

A: Yes, our roller chains are engineered to operate between -20C and +150C. With options for corrosion-resistant coatings and robust materials like stainless steel, they handle harsh industrial conditions while maintaining low noise and reliable performance.
